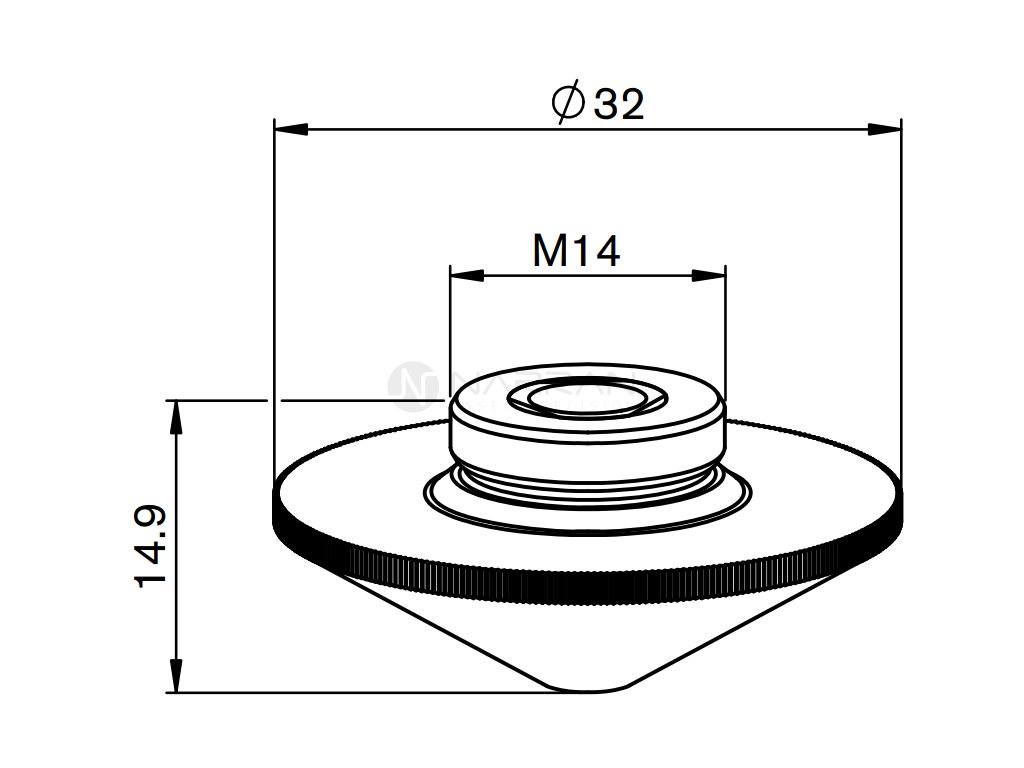

RAYTOOLS M14 CONICAL SINGLE NOZZLE D. 3,0mm ORIGINAL PART

Product detailed description

RAYTOOLS M14 CONICAL SINGLE NOZZLE D. 3,0mm ORIGINAL PART — This nozzle is a consumable component of the laser cutting head. Orifice geometry and diameter define the gas flow pattern and the stability of the cutting process. Application area: laser cutting.

Key features

• Conical orifice design for a concentrated outlet gas stream
• Original manufacturer part
• Designed for quick replacement without dismantling the complete head
• Precise assist-gas guidance for consistent cut-edge quality

Technical information

• Type: Nozzle
• Orifice diameter: 3.0 mm
• Type of supply: original manufacturer part
• OEM / reference numbers: L0530, RT120-0530, 120GJT0530

Application

The nozzle is installed in the laser cutting head. Orifice diameter is selected according to material type, sheet thickness and assist gas — smaller orifices for thin sheet, larger ones for heavier material and high-pressure nitrogen cutting. Inspect the orifice whenever head consumables are changed and replace any damaged or contaminated nozzle, because an asymmetric gas stream degrades cut quality and increases the risk of collision.

Compatibility

Listed as compatible with RAYTOOLS equipment. Before purchase, compare the reference numbers and dimensions with the part installed in your machine.

This item is an original manufacturer part.
