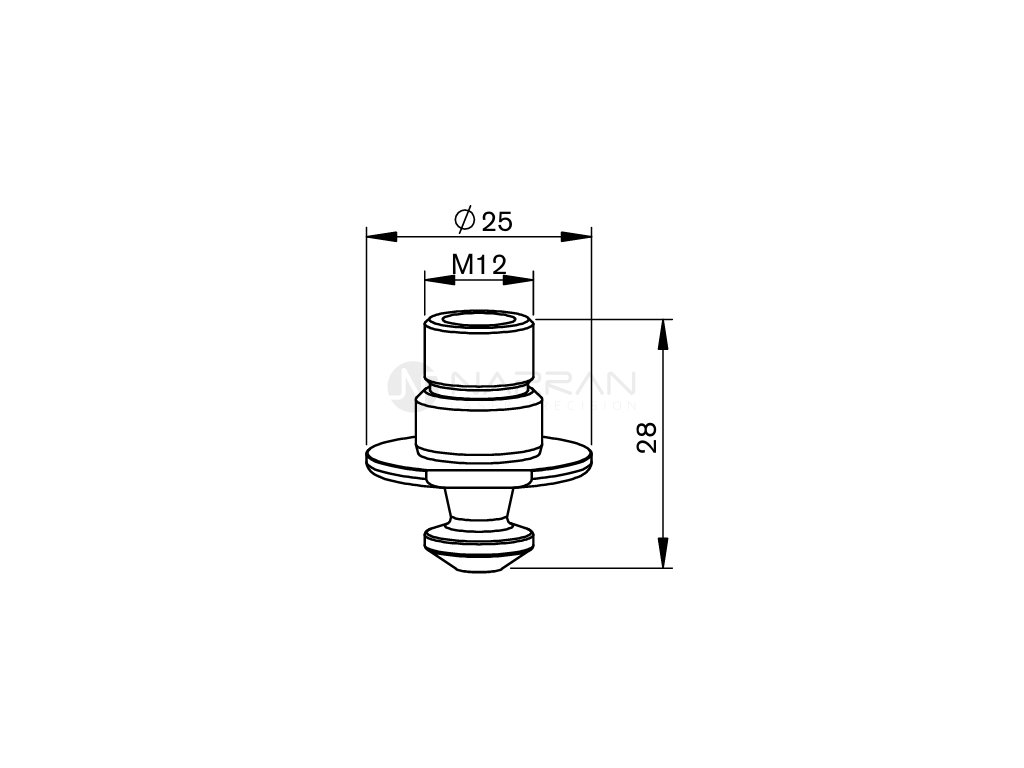

MZ-Nozzle pencil, Ø 1.3 mm HP CP

Product detailed description

MZ-Nozzle pencil, Ø 1.3 mm HP CP — The nozzle provides a concentrated assist-gas stream and at the same time shields the head optics from molten spatter. Application area: laser cutting.

Key features

• Chrome-plated surface limits slag adhesion and simplifies cleaning
• Pencil (extended) design for cutting in hard-to-reach positions
• Supplied in packs of 10 pcs for continuous replacement
• Economical assist-gas consumption when the correct orifice is selected

Technical information

• Type: Nozzle
• Orifice diameter: 1.3 mm
• Surface finish: chrome-plated
• Pack size / minimum order: 10 pcs
• OEM / reference numbers: L301812X, MZ373-1812CPX, 06283304860, 06283303690, A6283303690

Application

The nozzle is installed in the laser cutting head. Orifice diameter is selected according to material type, sheet thickness and assist gas — smaller orifices for thin sheet, larger ones for heavier material and high-pressure nitrogen cutting. Inspect the orifice whenever head consumables are changed and replace any damaged or contaminated nozzle, because an asymmetric gas stream degrades cut quality and increases the risk of collision.

Compatibility

Determine compatibility using reference numbers L301812X, MZ373-1812CPX, 06283304860, 06283303690, A6283303690. Compare them with the designation of the part installed in your machine and with the equipment documentation; contact us if anything is unclear and we will verify the version.

Unless explicitly stated otherwise, this is an alternative part designed for compatibility with the corresponding equipment.
