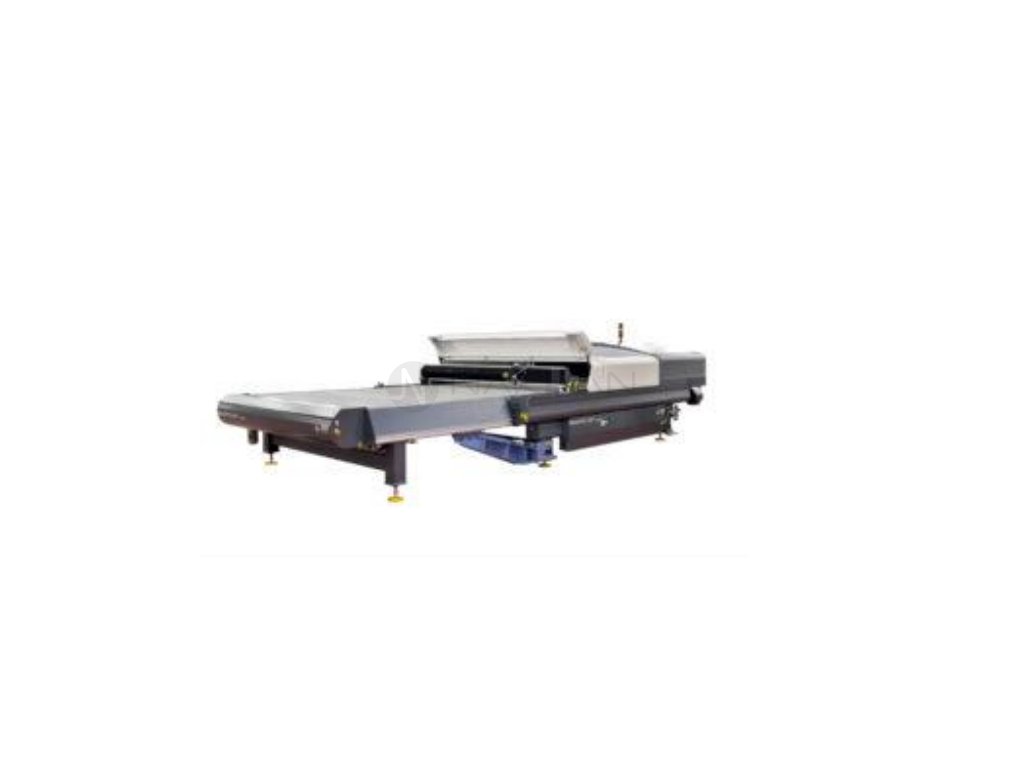

SEI Mercury

Product detailed description

Basic information

Manufacturer: SEI Laser Model: Mercury (1st generation)

Serial number: ME609.03015

Year of manufacture: 2011

Technical parameters

Working area 1500 x 3000 mm (configuration 1530)

Laser power 1500 W (IPG resonator)

Laser class Class 1 Drive Servo motors with optical measurement

Equipment

Replaceable worktable, cooling unit LC 71.01-A.4.5/6 Repeatability < 0.05 mm

Maximum acceleration up to 20 m/s2

Axis resolution 0.001 mm

Accuracy +/- 0.05 mm

Import of vector files .dxf, .plt, .eps, .ai, .pdf, .iso

Import of raster files .bmp, .jpeg

ICARO CAD/CAM software Suitable applications -

Cutting stainless steel, carbon steel, aluminum, brass -

Cutting thin and thicker sheets (depending on performance) -

Manufacture of parts for mechanical engineering, advertising and lighting industry, prototyping, custom metal production Maximum cutting thicknesses (1.5 kW)

Material Thickness Note Carbon steel up to 12 mm with oxygen Stainless steel up to 6 mm with nitrogen Aluminum up to 4–5 mm with nitrogen Brass / copper up to 2–3 mm reflective materials Titanium up to 3 mm nitrogen/argon required

Price (including shipping and installation) note price of new equipment 6,250,000 CZK The machine is functional and ready for immediate use. Possibility to test in advance
