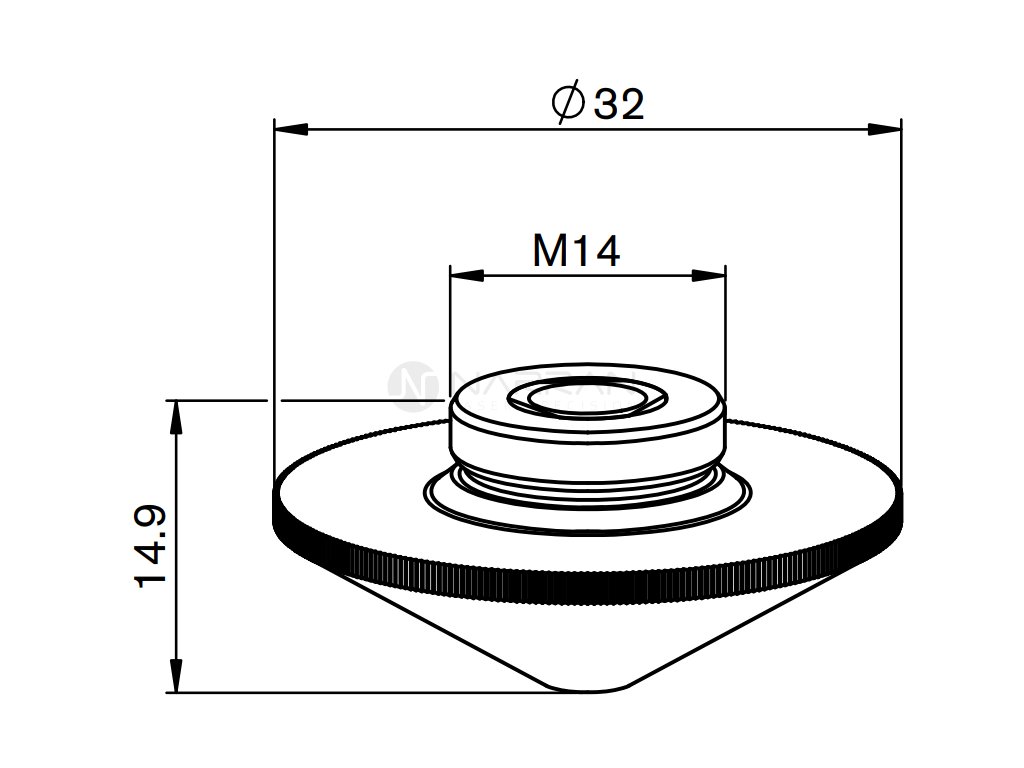

RAYTOOLS M14 CONICAL DOUBLE NOZZLE D. 1,2mm CHROME PLATED ORIGINAL PART

Code: NRL0612

Not rated

5381 raytools m14 conical double nozzle d 1 2mm chrome plated original part

€5,70 / pcs €6,90 incl. VAT

In stock at the manufacturer

Double nozzle Ø 1.2 mm for laser cutting. Supports precise gas guidance in day-to-day production. Reference no. L0612, RT120-0612.

Detailed information

Description
Discussion

Product detailed description

RAYTOOLS M14 CONICAL DOUBLE NOZZLE D. 1,2mm CHROME PLATED ORIGINAL PART — The two-stage design splits the assist-gas stream into two concentric zones, resulting in calmer flow in the kerf and improved melt ejection. Application area: laser cutting.

Key features

Chrome-plated surface limits slag adhesion and simplifies cleaning
Conical orifice design for a concentrated outlet gas stream
Original manufacturer part
Cutting-head consumable designed for fast replacement

Technical information

Type: Double nozzle
Orifice diameter: 1.2 mm
Surface finish: chrome-plated
Type of supply: original manufacturer part
OEM / reference numbers: L0612, RT120-0612, 120GJT0612

Application

The double nozzle is installed in the cutting head in the same way as a single nozzle. Select the diameter combination according to the machine manufacturer's cutting tables for the given material, thickness and gas pressure. After replacement, always verify nozzle centring relative to the beam and check the standoff distance.

Compatibility

Listed as compatible with RAYTOOLS equipment. Before purchase, compare the reference numbers and dimensions with the part installed in your machine.

This item is an original manufacturer part.
