RAYTOOLS M11 DOUBLE NOZZLE D. 3,0mm ORIGINAL PART

Code: NRL0730

Not rated

5507 raytools m11 double nozzle d 3 0mm original part

€7,21 / pcs €8,72 incl. VAT

In stock at the manufacturer

Double nozzle Ø 3.0 mm for laser cutting. Delivers precise gas guidance when the correct version is selected. Reference no. L0730, RT120-7230.

Detailed information

Description
Discussion

Product detailed description

RAYTOOLS M11 DOUBLE NOZZLE D. 3,0mm ORIGINAL PART — A double nozzle uses two concentric orifices to produce a better directed and more stable gas stream than a single nozzle. It is used mainly for high-pressure cutting and at higher laser powers. Application area: laser cutting.

Key features

Original manufacturer part
Accurate orifice geometry for repeatable cut-edge quality
Cutting-head consumable designed for fast replacement
Two concentric outlets for a more stable, better directed gas stream

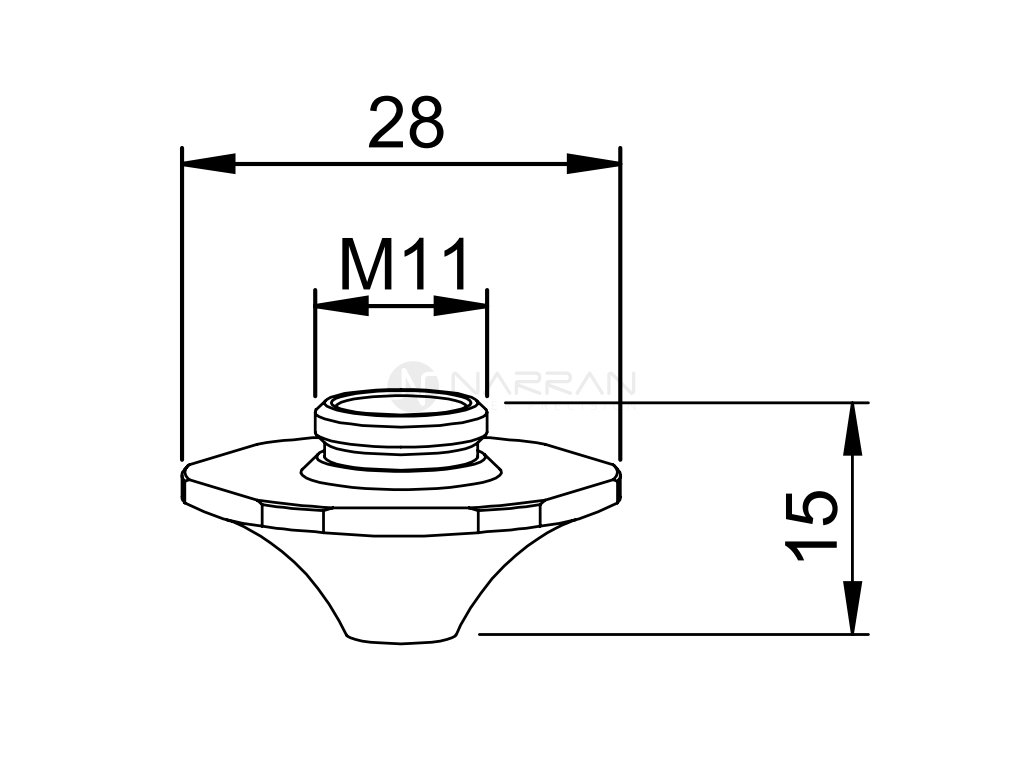

Technical information

Type: Double nozzle
Orifice diameter: 3.0 mm
Type of supply: original manufacturer part
OEM / reference numbers: L0730, RT120-7230, 120GJT7230, 120AU3630A

Application

The double nozzle is installed in the cutting head in the same way as a single nozzle. Select the diameter combination according to the machine manufacturer's cutting tables for the given material, thickness and gas pressure. After replacement, always verify nozzle centring relative to the beam and check the standoff distance.

Compatibility

Listed as compatible with RAYTOOLS equipment. Before purchase, compare the reference numbers and dimensions with the part installed in your machine.

This item is an original manufacturer part.
