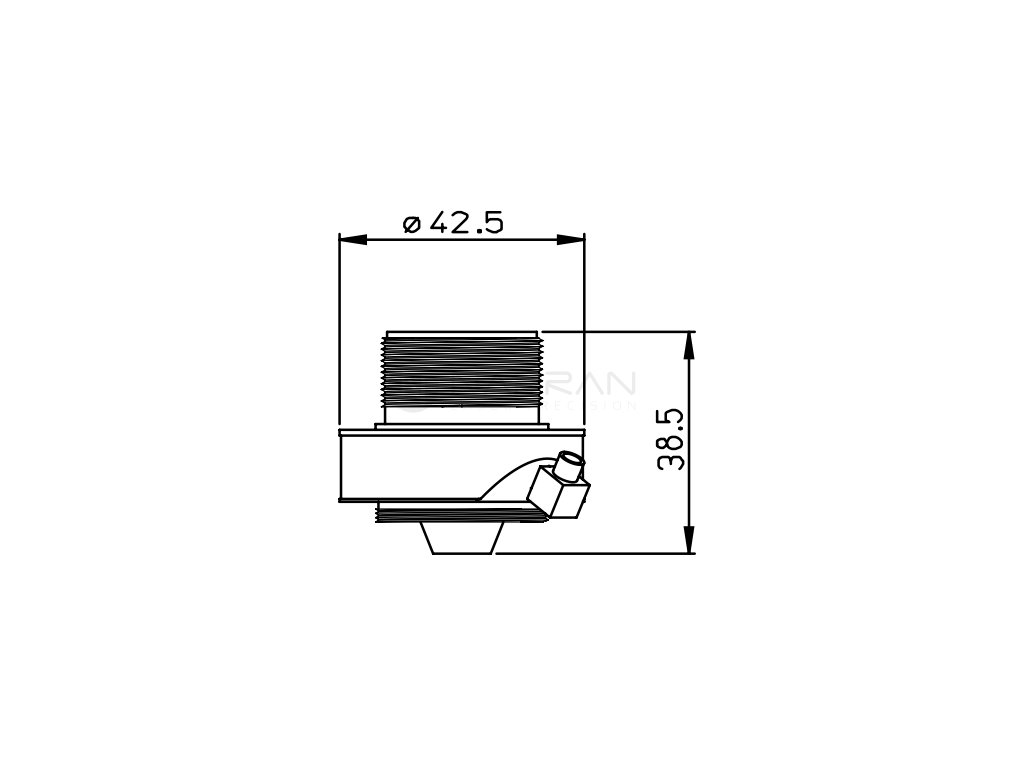

PT-DBL NOZ 2.3-1.5MM 6Lobes

Product detailed description

PT-DBL NOZ 2.3-1.5MM 6Lobes — The two-stage design splits the assist-gas stream into two concentric zones, resulting in calmer flow in the kerf and improved melt ejection. Application area: industrial machinery.

Key features

• Supplied in packs of 10 pcs for continuous replacement
• Two concentric outlets for a more stable, better directed gas stream
• Suitable for high-pressure cutting and higher laser powers
• Accurate orifice geometry for repeatable cut-edge quality

Technical information

• Type: Double nozzle
• Diameters per type designation: 2.3 / 1.5 mm
• Dimensions / rating: 1.5MM
• Pack size / minimum order: 10 pcs
• OEM / reference numbers: L307623, PT356-0023X

Application

The double nozzle is installed in the cutting head in the same way as a single nozzle. Select the diameter combination according to the machine manufacturer's cutting tables for the given material, thickness and gas pressure. After replacement, always verify nozzle centring relative to the beam and check the standoff distance.

Compatibility

Determine compatibility using reference numbers L307623, PT356-0023X. Compare them with the designation of the part installed in your machine and with the equipment documentation; contact us if anything is unclear and we will verify the version.

Unless explicitly stated otherwise, this is an alternative part designed for compatibility with the corresponding equipment.
