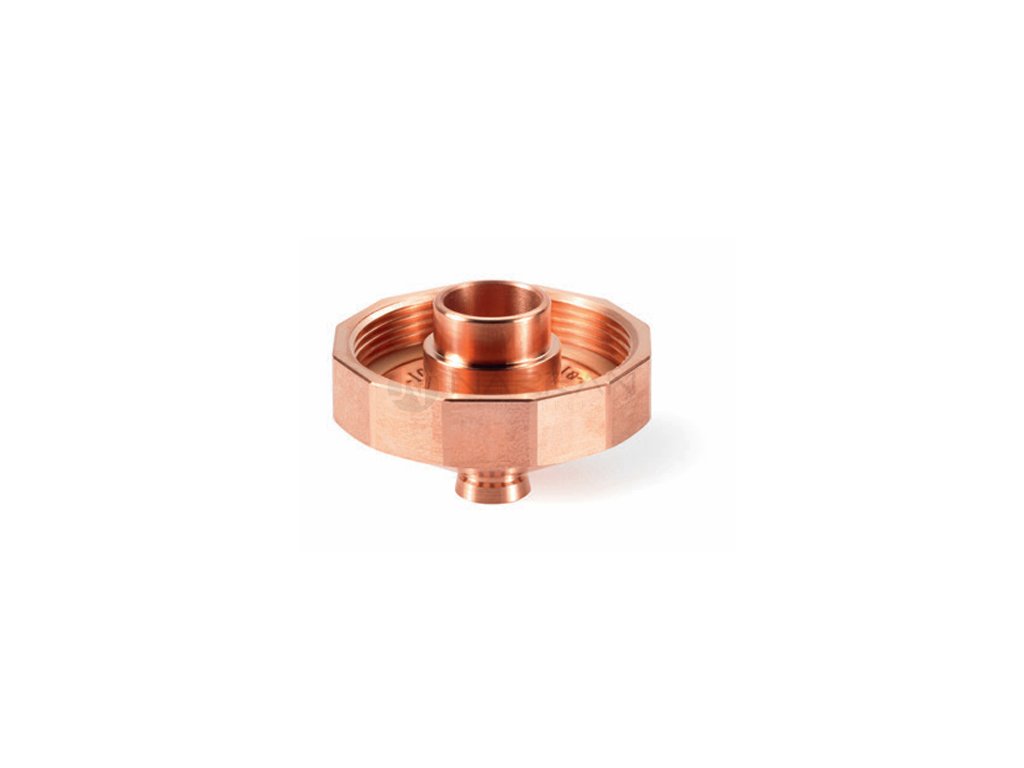

Nozzle EGL - d 1.4 mm,TRUMPF

Product detailed description

Nozzle EGL - d 1.4 mm,TRUMPF — This nozzle is a consumable component of the laser cutting head. Orifice geometry and diameter define the gas flow pattern and the stability of the cutting process. Application area: laser cutting.

Key features

• Supplied in packs of 10 pcs for continuous replacement
• Economical assist-gas consumption when the correct orifice is selected
• Designed for quick replacement without dismantling the complete head
• Precise assist-gas guidance for consistent cut-edge quality

Technical information

• Type: Nozzle
• Orifice diameter: 1.4 mm
• Pack size / minimum order: 10 pcs
• OEM / reference numbers: 1879940

Application

The nozzle is installed in the laser cutting head. Orifice diameter is selected according to material type, sheet thickness and assist gas — smaller orifices for thin sheet, larger ones for heavier material and high-pressure nitrogen cutting. Inspect the orifice whenever head consumables are changed and replace any damaged or contaminated nozzle, because an asymmetric gas stream degrades cut quality and increases the risk of collision.

Compatibility

Listed as compatible with TRUMPF equipment. Before purchase, compare the reference numbers and dimensions with the part installed in your machine.

Unless explicitly stated otherwise, this is an alternative part designed for compatibility with the corresponding equipment.
