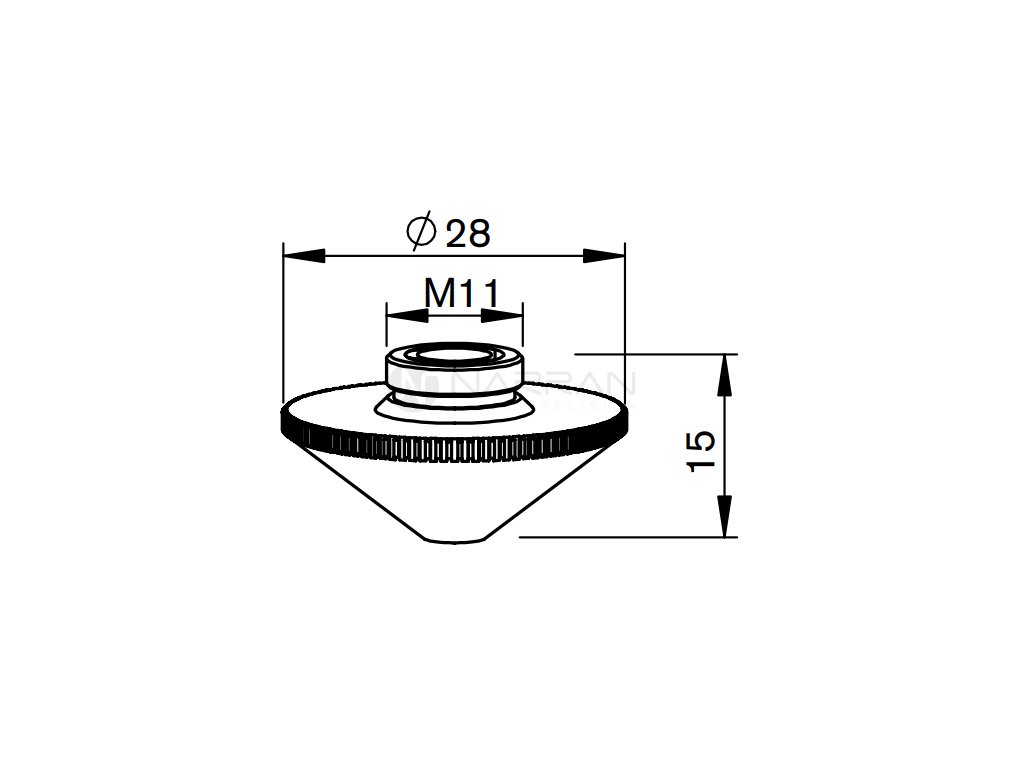

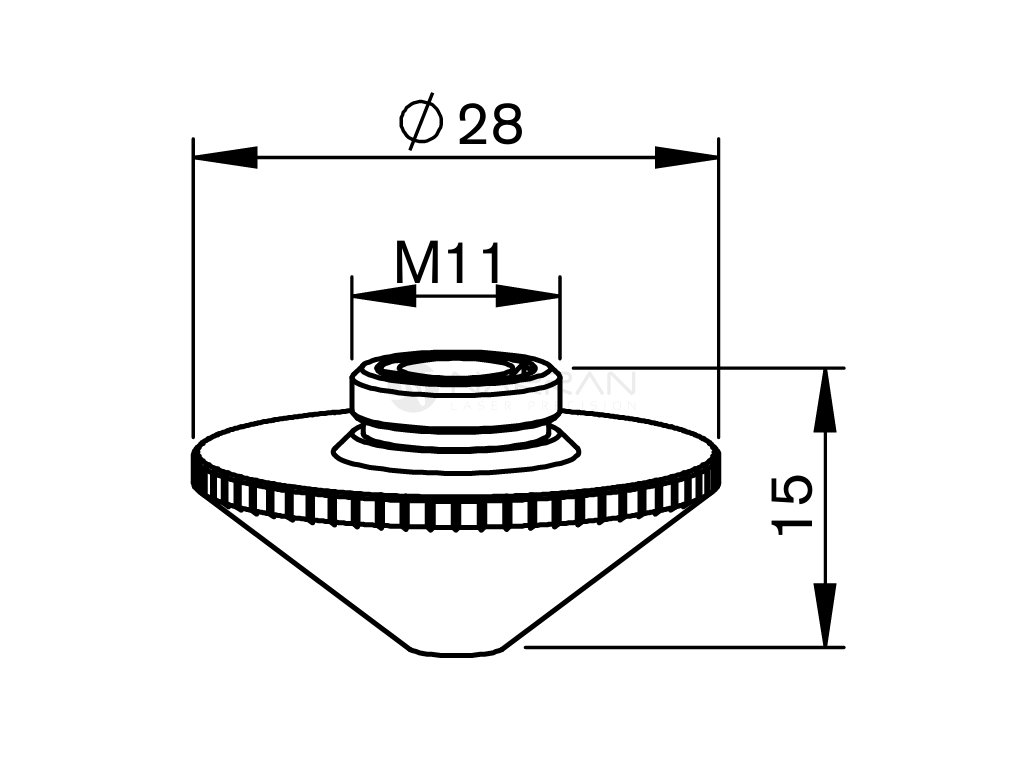

Nozzle Double d 2.3 mm, PRECITEC

Product detailed description

Nozzle Double d 2.3 mm, PRECITEC — A double nozzle uses two concentric orifices to produce a better directed and more stable gas stream than a single nozzle. It is used mainly for high-pressure cutting and at higher laser powers. Application area: laser cutting.

Key features

• Two concentric outlets for a more stable, better directed gas stream
• Suitable for high-pressure cutting and higher laser powers
• Accurate orifice geometry for repeatable cut-edge quality
• Cutting-head consumable designed for fast replacement

Technical information

• Type: Double nozzle
• Diameter: 2.3 mm
• Dimensions / rating: 2.3 mm
• OEM / reference numbers: P0591-002-00023

Application

The double nozzle is installed in the cutting head in the same way as a single nozzle. Select the diameter combination according to the machine manufacturer's cutting tables for the given material, thickness and gas pressure. After replacement, always verify nozzle centring relative to the beam and check the standoff distance.

Compatibility

Listed as compatible with PRECITEC equipment. Before purchase, compare the reference numbers and dimensions with the part installed in your machine.

Unless explicitly stated otherwise, this is an alternative part designed for compatibility with the corresponding equipment.
