TR-CERAMIC NOZZLE HOLDER . DIAS III

Code: NRAL108

Not rated

€49,05 / pcs €59,35 incl. VAT

In stock (18 pcs)

Ceramic ring for laser cutting. Delivers reliable height sensing when the correct version is selected. Reference no. AL108, TR301-0432.

Detailed information

Description
Discussion

Product detailed description

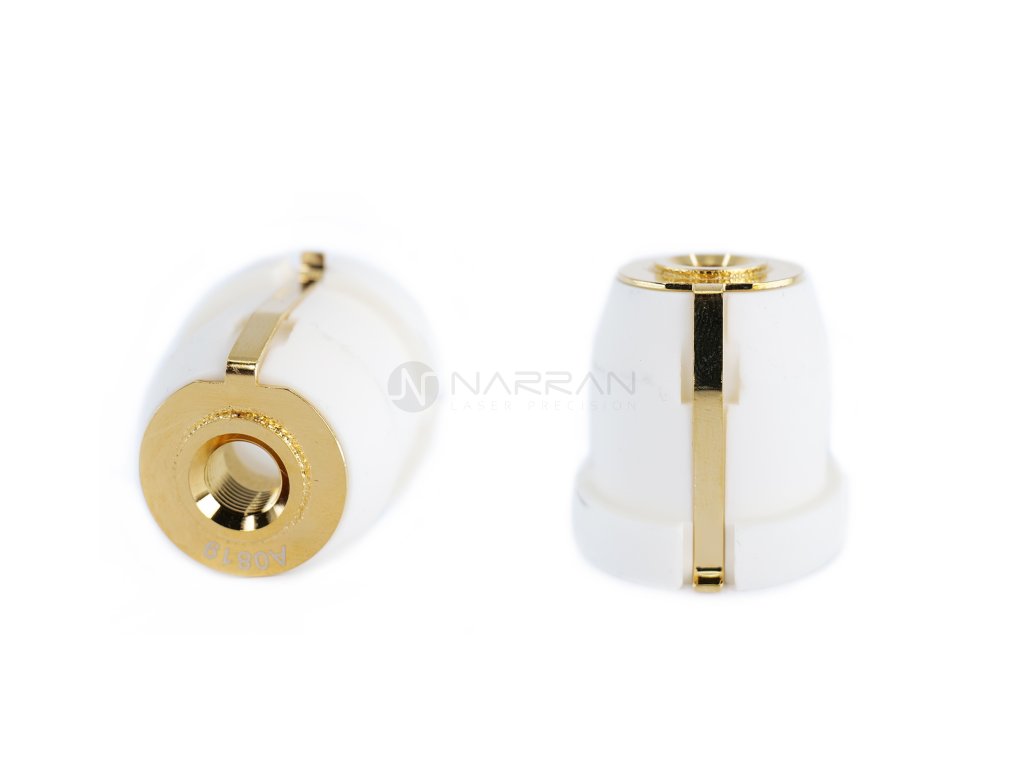

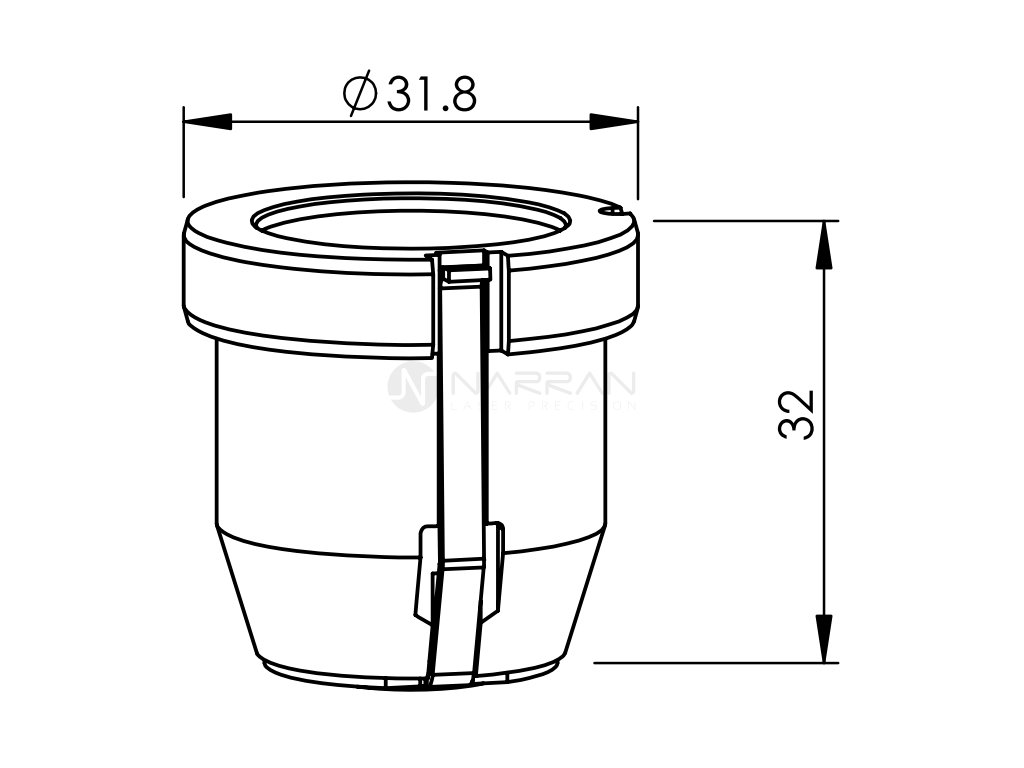

TR-CERAMIC NOZZLE HOLDER . DIAS III — This ceramic head component electrically isolates the nozzle from the head body. It is part of the standoff measuring system and acts as a designed breakaway element that protects more expensive head parts in a collision. Application area: laser cutting.

Key features

Breakaway design that protects more expensive head components on impact
Electrical isolation of the nozzle for reliable capacitive height sensing
Accurate location and centring of the nozzle against the head body
Resistance to the high temperatures around the cutting zone

Technical information

Type: Ceramic ring
OEM / reference numbers: AL108, TR301-0432, 254493-260432

Application

The ring is fitted onto the cutting-head body and retains the nozzle. Keep the seating faces clean and free of slag, since contamination degrades height sensing. Replace a cracked or burned ring immediately, as it causes unstable standoff measurement and process faults.

Compatibility

Determine compatibility using reference numbers AL108, TR301-0432, 254493-260432. Compare them with the designation of the part installed in your machine and with the equipment documentation; contact us if anything is unclear and we will verify the version.

Unless explicitly stated otherwise, this is an alternative part designed for compatibility with the corresponding equipment.
